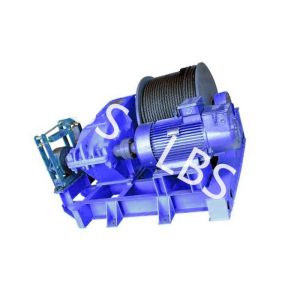

    Customized LBS Groove Drum Light Duty Electric Winch 5 Ton With Little Noise

    Ask Lasest Price
    Brand Name : LBS
    Payment Terms : L/C, T/T
    Supply Ability : 500 Pieces/Sets Per Month
    Delivery Time : 30 to 40 working days, depends on order amount and specification
    Price : Negotiation
    Certification : DNV, ABS, GL, LR, BV, CCS, RINA, NK,
    • Product Details
    • Company Profile

    Customized LBS Groove Drum Light Duty Electric Winch 5 Ton With Little Noise



    product features
    1. Top quality with competitive price.
    2. Compact structure and reasonable design
    3. Safe and reliable function.
    4. Highly efficient, constant operating torque motor.
    6. Smooth running over the entire speed range.
    7. Reliable operation with little noise.
    Parameter reference :designed by your requirement
    ModelFrirst layer Pull force(T)Drum bottom diameterLayerRope capaticty(mm)Diameter of steel cable(mm)Model of power
    LBSWHG3-1017-12305417015JZH2-420 D51
    LBSWHG3-2027-28380418020JZH-900 D240 101
    LBSWHG3-3036-25470424024JZH-1800 D240101
    LBSWHG3-40410-23470427028JZH-2000 D240 101
    LBS0WHG3-50510-25600430030JZH-3000 D240101
    LBSWHG3-1001015-30640850038JZH-4300 D240101
    Electric winch machine application
    Electric winches mainly used for oversize concrete construction of steel installation and disassembly of mechanical equipment. The wire rope ordered arrangement. Lifting is safe and reliable.It is suitable for bridge,factory,harbor,wharf,etc. Gear reducer driving,Used for hoisting,pulling,drag,compact structure,stable running.

    Working principle
    electric winch for widely use transforms electric energy into mechanical energy through the motor, winch is rotor of the motor moves, outputs. Through the brake and the reducer, it reduces speed to rotate the reel. The reel winds the wire rope and passes through pulley block to make the hook lift the load, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.

    Company profile​:
    Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.
